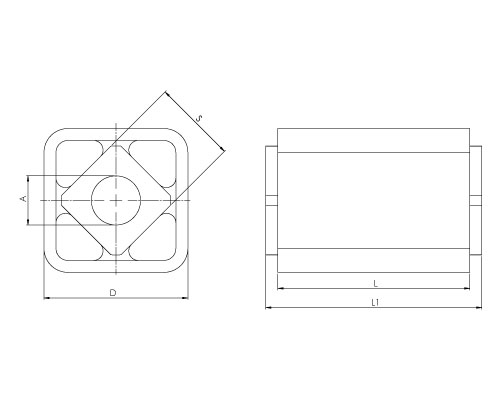

ADR-C swing element providing 360-degree mounting connectionIt is designed to connect the apparatus with nuts and bolts through the empty hole in the inner square bar.
Drag and rotate with your mouse or finger
ADR-C swing element providing 360-degree mounting connectionIt is designed to connect the apparatus with nuts and bolts through the empty hole in the inner square bar.
| Model Type | ØA+0,5 0 | D | S | L | L1 | Torque M in Nm at α 5° | Torque M in Nm at α 10° | Torque M in Nm at α 15° | Torque M in Nm at α 20° | Torque M in Nm at α 25° | Torque M in Nm at α 30° | Ağırlık Weight (Kg) |
| ADR-C 15x25 | 10 | 30 | 16 | 25 | 30 | 0.7 | 1.6 | 2.6 | 4.0 | 5.7 | 8.2 | 0.10 |
| ADR-C 15x40 | 10 | 30 | 16 | 40 | 45 | 1.1 | 2.5 | 4.2 | 6.4 | 9.2 | 13.2 | 0.16 |
| ADR-C 15x60 | 10 | 30 | 16 | 60 | 65 | 1.6 | 3.8 | 6.3 | 9.6 | 13.8 | 19.8 | 0.24 |
| ADR-C 18x30 | 13 | 35 | 18 | 30 | 35 | 1.9 | 4.5 | 7.5 | 11.0 | 15.0 | 20.6 | 0.15 |
| ADR-C 18x50 | 13 | 35 | 18 | 50 | 55 | 3.2 | 7.5 | 12.5 | 18.3 | 25.0 | 34.4 | 0.24 |
| ADR-C 18x80 | 13 | 35 | 18 | 80 | 85 | 5.1 | 12.0 | 20.0 | 29.3 | 40.0 | 55.0 | 0.38 |
| ADR-C 27x40 | 16 | 40 | 25 | 40 | 45 | 4.7 | 10.7 | 17.5 | 26.9 | 39.5 | 57.0 | 0.16 |
| ADR-C 27x60 | 16 | 40 | 25 | 60 | 65 | 7.0 | 16.0 | 26.3 | 40.3 | 59.3 | 85.5 | 0.24 |
| ADR-C 27x100 | 16 | 40 | 25 | 100 | 105 | 11.7 | 26.7 | 43.8 | 67.2 | 98.8 | 142.5 | 0.40 |
| ADR-C 38x60 | 20 | 60 | 35 | 60 | 70 | 13.0 | 30.4 | 50.6 | 78.0 | 113.0 | 162.0 | 0.72 |
| ADR-C 38x80 | 20 | 60 | 35 | 80 | 90 | 17.3 | 40.5 | 67.5 | 104.0 | 151.0 | 216.0 | 0.95 |
| ADR-C 38x120 | 20 | 60 | 35 | 120 | 130 | 26.1 | 60.8 | 101.2 | 156.0 | 226.0 | 324.0 | 1.39 |
| ADR-C 45x80 | 24 | 80 | 45 | 80 | 90 | 27.6 | 62.4 | 104.0 | 160.0 | 222.0 | 320.0 | 1.46 |
| ADR-C 45x100 | 24 | 80 | 45 | 100 | 110 | 34.5 | 78.0 | 130.0 | 200.0 | 278.0 | 400.0 | 1.81 |
| ADR-C 50x120 | 30 | 80 | 50 | 120 | 130 | 51.0 | 133.0 | 250.0 | 395.0 | 570.0 | 780.0 | 2.21 |
| ADR-C 50x200 | 30 | 80 | 50 | 200 | 210 | 102.0 | 260.0 | 475.0 | 745.0 | 1070.0 | 1450.0 | 3.65 |
