Suspension- ADW-C Series
View in 360°
Drag with your mouse or finger to rotate the product
Suspension Elements

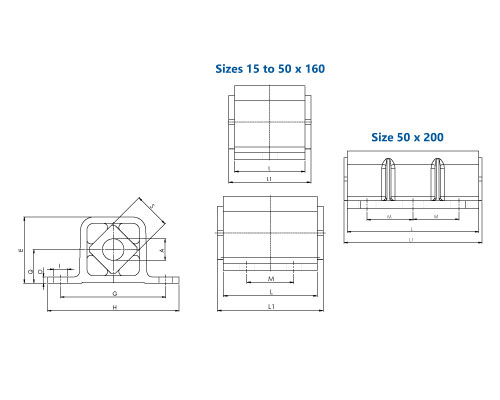

ADW-C rubber suspention bodies are manufactured from aluminum profile and inner square piece of alumi-num alloy. The inner square piece is fixed to the lever arm with a single hole through its center.
| Model Type |
ØA+0,5 0 |
E | G | H | ØI | O | Q | S | L | L1 | M | Torque M in Nm at α 5° |
Torque M in Nm at α 10° |
Torque M in Nm at α 15° |
Torque M in Nm at α 20° |
Torque M in Nm at α 25° |
Torque M in Nm at α 30° |
Ağırlık Weight (Kg) |
| ADW-C 15x25 | 10 | 31 | 50 | 65 | 7 | 3 | 16 | 16 | 25 | 30 | - | 0.7 | 1.6 | 2.6 | 4.0 | 5.7 | 8.2 | 0.08 |
| ADW-C 15x40 | 10 | 31 | 50 | 65 | 7 | 3 | 16 | 16 | 40 | 45 | - | 1.1 | 2.5 | 4.2 | 6.4 | 9.2 | 13.2 | 0.12 |
| ADW-C 15x60 | 10 | 31 | 50 | 65 | 7 | 3 | 16 | 16 | 60 | 65 | 40 | 1.6 | 3.8 | 6.3 | 9.6 | 13.8 | 19.8 | 0.17 |
| ADW-C 18x30 | 13 | 37 | 60 | 80 | 9 | 3,5 | 19 | 18 | 30 | 35 | - | 1.9 | 4.5 | 7.5 | 11.0 | 15.0 | 20.6 | 0.11 |
| ADW-C 18x50 | 13 | 37 | 60 | 80 | 9 | 3,5 | 19 | 18 | 50 | 55 | - | 3.2 | 7.5 | 12.5 | 18.3 | 25.0 | 34.4 | 0.18 |
| ADW-C 18x80 | 13 | 37 | 60 | 80 | 9 | 3,5 | 19 | 18 | 80 | 85 | 50 | 5.1 | 12.0 | 20.0 | 29.3 | 40.0 | 55.0 | 0.29 |
| ADW-C 27x40 | 16 | 46 | 80 | 105 | 11 | 4,5 | 23,5 | 25 | 40 | 45 | - | 4.7 | 10.7 | 17.5 | 26.9 | 39.5 | 57.0 | 0.18 |
| ADW-C 27x60 | 16 | 46 | 80 | 105 | 11 | 4,5 | 23,5 | 25 | 60 | 65 | - | 7.0 | 16.0 | 26.3 | 40.3 | 59.3 | 85.5 | 0.27 |
| ADW-C 27x100 | 16 | 46 | 80 | 105 | 11 | 4,5 | 23,5 | 25 | 100 | 105 | 60 | 11.7 | 26.7 | 43.8 | 67.2 | 98.8 | 142.5 | 0.44 |
| ADW-C 38x60 | 20 | 63 | 100 | 125 | 13 | 6 | 32 | 35 | 60 | 70 | - | 13.0 | 30.4 | 50.6 | 78.0 | 113.0 | 162.0 | 0.51 |
| ADW-C 38x80 | 20 | 63 | 100 | 125 | 13 | 6 | 32 | 35 | 80 | 90 | 40 | 17.3 | 40.5 | 67.5 | 104.0 | 151.0 | 216.0 | 0.67 |
| ADW-C 38x120 | 20 | 63 | 100 | 125 | 13 | 6 | 32 | 35 | 120 | 130 | 80 | 26.0 | 60.8 | 101.2 | 156.0 | 226.0 | 324.0 | 1.00 |
| ADW-C 45x80 | 24 | 81 | 115 | 145 | 13x27 | 9 | 41 | 45 | 80 | 90 | - | 27.6 | 62.4 | 104.0 | 160.0 | 222.0 | 320.0 | 1.10 |
| ADW-C 45x100 | 24 | 81 | 115 | 145 | 13x27 | 9 | 41 | 45 | 100 | 110 | 58 | 34.5 | 78.0 | 130.0 | 200.0 | 278.0 | 400.0 | 1.35 |
| ADW-C 45x150 | 24 | 81 | 115 | 145 | 13x27 | 9 | 41 | 45 | 150 | 160 | 90 | 51.8 | 117.0 | 195.0 | 300.0 | 420.0 | 600.0 | 2.00 |
| ADW-C 50x120 | 30 | 88 | 130 | 170 | 17x27 | 12 | 45 | 50 | 120 | 130 | 60 | 51.0 | 133.0 | 250.0 | 395.0 | 570.0 | 780.0 | 1.90 |
| ADW-C 50x160 | 30 | 88 | 130 | 170 | 17x27 | 12 | 45 | 50 | 160 | 170 | 70 | 77.0 | 197.0 | 363.0 | 570.0 | 820.0 | 1115.0 | 2.50 |
| ADW-C 50x200 | 30 | 88 | 130 | 170 | 17x27 | 12 | 45 | 50 | 200 | 210 | 70 | 102.0 | 260.0 | 475.0 | 745.0 | 1070.0 | 1450.0 | 3.10 |
