Oscillation
For models AAK 15 to AAK 45, it is recommended to use bolts through the square centerpieces to fix the inner squares. For AAK 50 and above models, we recommend using tension-resistant bolts attached to the threaded holes drilled into the square center pieces.

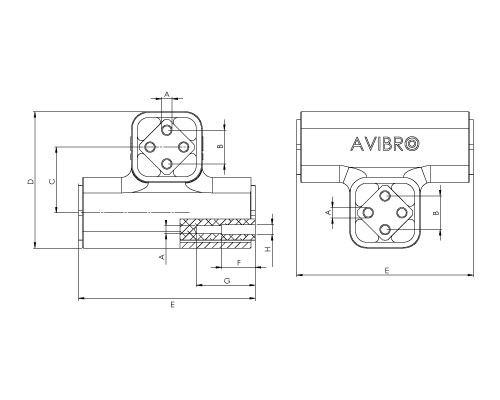

| Model / Type | G (N) |
S max in min¯¹ at ±5º Iˈ |
A+0,5 0 |
B +0,2 - |
C | D | E | F | I | I' | Ağırlık / Weight (Kg) |
||
| AAK 15 | 160 | 1200 | 5 | 10 | + - |
0,2 | 27 | 50 | 65 | - | - | - | 0.40 |
| AAK 18 | 300 | 800 | 6 | 12 | + - |
0,3 | 32 | 60 | 85 | - | - | - | 0.60 |
| AAK 27 | 800 | 800 | 8 | 20 | + - |
0,4 | 45 | 89 | 105 | - | - | - | 1.50 |
| AAK 38 |
1600 | 800 | 10 | 25 | + - |
0,5 | 60 | 120 | 130 | - | - | - | 3.00 |
| AAK 45 | 3000 | 600 | 12 | 35 | + - |
0,5 | 72 | 150 | 160 | - | - | - | 5.30 |
| AAK 50 | 5600 | 400 | M12 | 40 | 78 | 162 | 210 | 40 | 70 | 12.50 | 9.00 | ||
| AAK 60 | 10000 | 300 | M16 | 45 | 100 | 218 | 310 | 50 | 80 | 16.50 | 35.00 | ||
| AAK 80 | 20000 | 150 | M20 | 60 | 136 | 280 | 410 | 50 | 90 | 20.50 | 75.00 | ||
| AAK 100-4 | 30000 | 100 | M24 | 75 | 170 | 340 | 410 | 50 | 100 | 25 | 124.00 | ||
| AAK 100-5 | 40000 | 100 | M24 | 75 | 170 | 340 | 510 | 50 | 100 | 25 | 148.00 |
