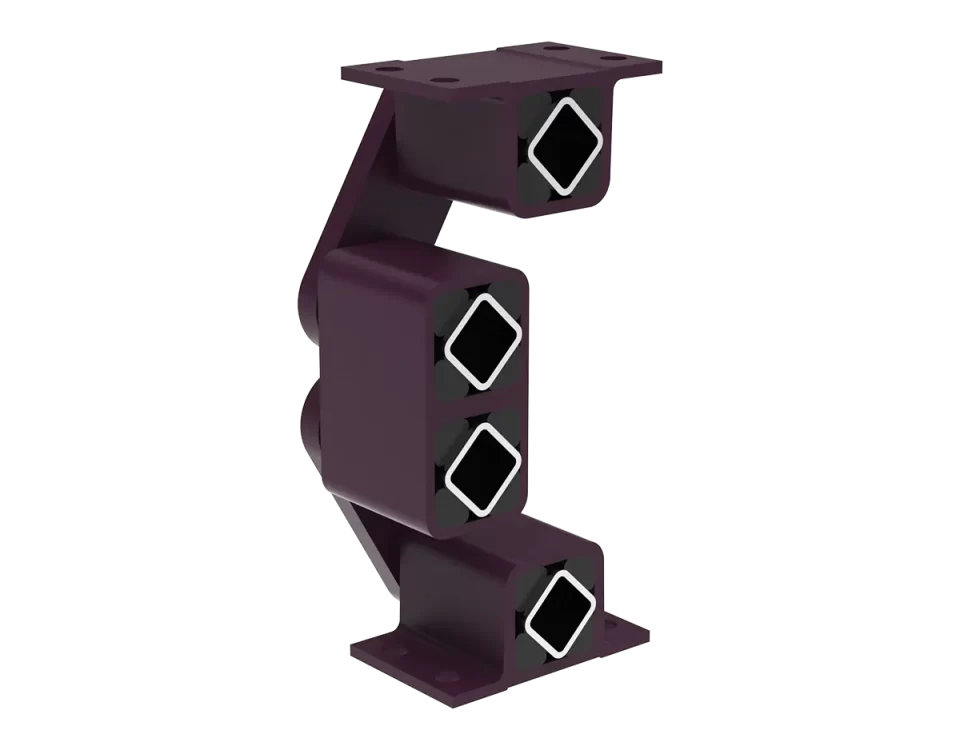

It is used in cases where the load capacity of the stan-dard AAB product is higher. With its stronger structure, it is more durable than the AAB model.
Drag and rotate with your mouse or finger
It is used in cases where the load capacity of the stan-dard AAB product is higher. With its stronger structure, it is more durable than the AAB model.
Model / Type | G (N) | A Yüksüz (mm) | A Max Yük (mm) | B Yüksüz (mm) | B Max Yük (mm) | C | ØD | E | F | H | K | L | M | N | Ağırlık / Weight (Kg) |
| AAB HD 27 | 500-1250 | 216 | 182 | 59 | 78 | 70 | 11 | 80 | 105 | 4,5 | 17 | 60 | 80 | - | 1.89 |
| AAB HD 38 | 1200-2500 | 288 | 241 | 77 | 103 | 95 | 13 | 100 | 125 | 6 | 21 | 80 | 105 | 40 | 4.30 |
| AAB HD 45 | 2000-4200 | 346 | 290 | 98 | 130 | 110 | 13x26 | 115 | 145 | 8 | 28 | 100 | 132 | 58 | 11.0 |
| AAB HD 50 | 3500-8400 | 376 | 313 | 105 | 141 | 120 | 17x27 | 130 | 170 | 12 | 40 | 120 | 165 | 60 | 20.6 |
| AAB HD 50-1.6 | 4800-11300 | 376 | 313 | 105 | 141 | 120 | 17x27 | 130 | 170 | 12 | 45 | 160 | 210 | 70 | 29.1 |
| AAB HD 50-2 | 6000-14000 | 376 | 313 | 105 | 141 | 120 | 17x27 | 130 | 170 | 12 | 45 | 200 | 250 | 70 | 32.0 |
