Suspension Elements

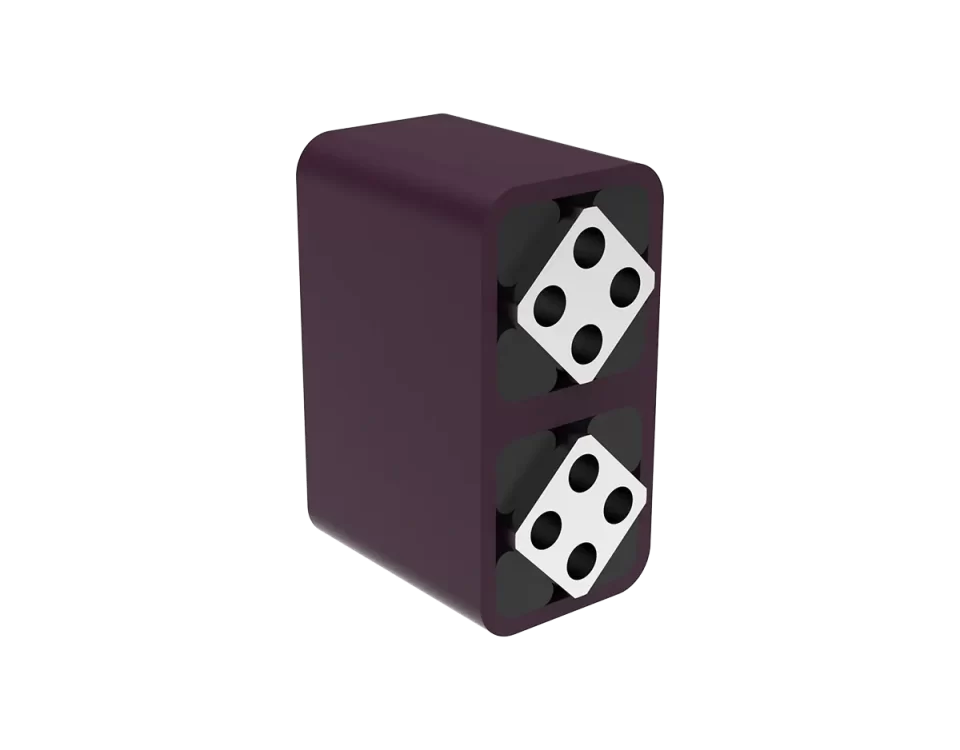

ADO-A type swing elements, body aluminum inner square bar, double, quad, or each can be ordered with tapped thread in the hole. It allows the double tensio-ning profile attached to it to work in opposite directions. It offers double operating momentum at a fixed swing angle of 30 degrees.
| Model Type |
ØA+0,5 0 |
B | D | E | F | ØS | G | H | L | L1 | Torque M in Nm at α 5° |
Torque M in Nm at α 10° |
Torque M in Nm at α 15° |
Torque M in Nm at α 20° |
Torque M in Nm at α 25° |
Torque M in Nm at α 30° |
Ağırlık Weight (Kg) |
| ADO-A 15x25 | 5 | 10 | 30 | 27,5 | 57,5 | 16 | - | - | 25 | 30 | 0.7 | 1.6 | 2.6 | 4.0 | 5.7 | 8.2 | 0.13 |
| ADO-A 15x40 | 5 | 10 | 30 | 27,5 | 57,5 | 16 | - | - | 40 | 45 | 1.1 | 2.5 | 4.2 | 6.4 | 9.2 | 13.2 | 0.19 |
| ADO-A 15x60 | 5 | 10 | 30 | 27,5 | 57,5 | 16 | - | - | 60 | 65 | 1.6 | 3.8 | 6.3 | 9.6 | 13.8 | 19.8 | 0.28 |
| ADO-A 18x30 | 6 | 12 | 36 | 33 | 69 | 18 | - | - | 30 | 35 | 1.9 | 4.5 | 7.5 | 11.0 | 15.0 | 20.6 | 0.19 |
| ADO-A 18x50 | 6 | 12 | 36 | 33 | 69 | 18 | - | - | 50 | 55 | 3.2 | 7.5 | 12.5 | 18.3 | 25.0 | 34.4 | 0.31 |
| ADO-A 18x80 | 6 | 12 | 36 | 33 | 69 | 18 | - | - | 80 | 85 | 5.1 | 12.0 | 20.0 | 29.3 | 40.0 | 55.0 | 0.49 |
| ADO-A 27x40 | 8 | 18 | 44 | 41 | 85 | 25 | - | - | 40 | 45 | 4.7 | 10.7 | 17.5 | 26.9 | 39.5 | 57.0 | 0.26 |
| ADO-A 27x60 | 8 | 18 | 44 | 41 | 85 | 25 | - | - | 60 | 65 | 7.0 | 16.0 | 26.3 | 40.3 | 59.3 | 85.5 | 0.39 |
| ADO-A 27x100 | 8 | 18 | 44 | 41 | 85 | 25 | - | - | 100 | 105 | 11.7 | 26.7 | 43.8 | 67.2 | 98.8 | 142.5 | 0.64 |
| ADO-A 38x60 | 10 | 25 | 60 | 60 | 120 | 35 | - | - | 60 | 70 | 13.0 | 30.4 | 50.6 | 78.0 | 113.0 | 162.0 | 0.81 |
| ADO-A 38x80 | 10 | 25 | 60 | 60 | 120 | 35 | - | - | 80 | 90 | 17.3 | 40.5 | 67.5 | 104.0 | 151.0 | 216.0 | 1.06 |
| ADO-A 38x120 | 10 | 25 | 60 | 60 | 120 | 35 | - | - | 120 | 130 | 26.0 | 60.8 | 101.2 | 156.0 | 226.0 | 324.0 | 1.69 |
| ADO-A 45x80 | 12 | 35 | 85 | 73 | 150 | 45 | - | - | 80 | 90 | 27.6 | 62.4 | 104.0 | 160.0 | 222.0 | 320.0 | 1.84 |
| ADO-A 45x100 | 12 | 35 | 85 | 73 | 150 | 45 | - | - | 100 | 110 | 34.5 | 78.0 | 130.0 | 200.0 | 278.0 | 400.0 | 2.27 |
| ADO-A 45x150 | 12 | 35 | 85 | 73 | 150 | 45 | - | - | 150 | 160 | 51.8 | 117.0 | 195.0 | 300.0 | 420.0 | 600.0 | 3.37 |
| ADO-A 50x120 | M12 | 40 | 89 | 78 | 168 | 50 | 30 | 60 | 120 | 130 | 51.0 | 133.0 | 250.0 | 395.0 | 570.0 | 780.0 | 5.48 |
| ADO-A 50x160 | M12 | 40 | 89 | 78 | 168 | 50 | 30 | 60 | 160 | 170 | 77.0 | 197.0 | 363.0 | 570.0 | 820.0 | 1115.0 | 7.18 |
| ADO-A 50x200 | M12 | 40 | 89 | 78 | 168 | 50 | 40 | 70 | 200 | 210 | 102.0 | 260.0 | 475.0 | 745.0 | 1070.0 | 1450.0 | 9.27 |
